D2541-176 TV Ceiling Mount 41" long for 13" to 42" TVs

  • $ 118.00
  • Save $ 28.00

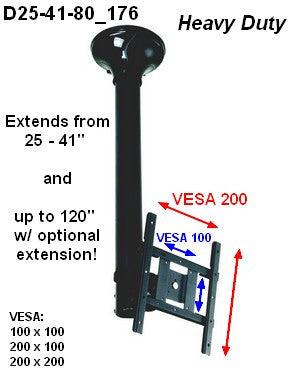

D2541_176 Heavy-Duty TV Ceiling Mount Arm

Extends from 25" to 41" and up to 120" with optional extension rod.

Fits TVs from 13" - 42" for larger TVs, see model D25-41-80.


* Regular Price: $165.00
* Sale Price: $118.00 + Shipping $45.00 (Contiguous US)

This is a really heavy-duty TV ceiling monitor mount with unique monitor viewing possibilities. By itself, it extends from 21 to 41" long. By inserting our optional extension pole (D254180_X), the total drop from the ceiling increases from 41" to 120" (10 feet!). You can add as many extensions as needed.

It includes a VESA 75 x 75 & 100 x 100 bracket, plus a VESA adapter that reaches up to VESA 200 x 200 patterns.

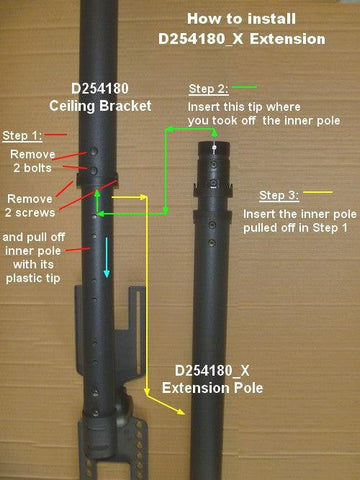

The following image shows the mount before extending it, at 21". By re-arranging 2 bolts, you can extend it down to 41". If more length is needed, you can purchase the D254180_X extension pole, which is a similar telescopic pole which inserts between this item's outer and inner poles and which will allow a total extension of 120". Simply remove the inner pole and insert the extension in between. If even more length is needed, you can add an extra extension pole.  Scroll all the way down for more length information.

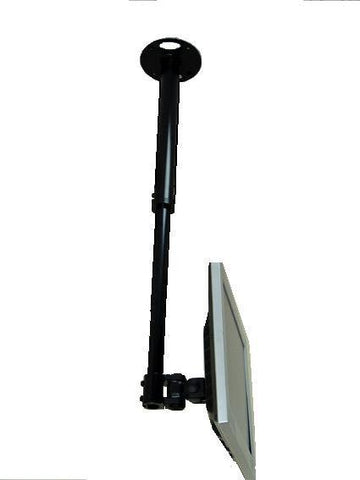

- Monitor can face the floor: this TV Ceiling mount is unique. As shown below, the monitor bracket tilts all the way down, 90 degrees, in order to face 100% the floor, if needed. Used many times over a dental chair or bed.

                    Ceiling TV Monitor Mount can tilt down to face 100% to the floor
-Total Tilt: 135 degrees; Swivel: 220 degrees; LCD Rotation: 360 degrees.

D254180 TV ceiling stand can also be used as a floor standClick on image above for larger view

New! Attach an iPAD to this ceiling arm with the optional D-iPAD Holder:

Ceiling Ipad Mount: mount an ipad on the D254180-176 ceiling mount

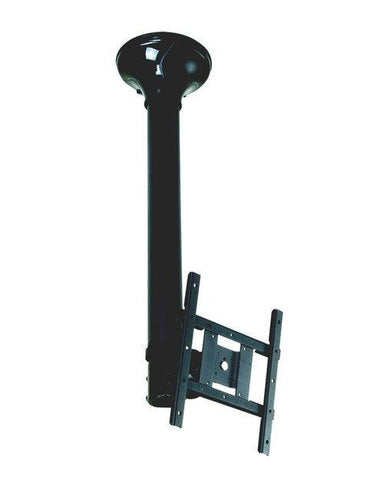

D254180-176 TV Monitor ceiling mount that can tilt 90 degrees and  face 100% to the floor
Click on the image above for larger view

This adjustable length TV Ceiling mount includes 5 length settings, from 25" to 41", in increments of 4". Ideal for mounting LCD monitors in medical centers, dental offices, industries, etc..

Its swivel, rotation and tilt capabilities facilitate the ideal viewing angle.

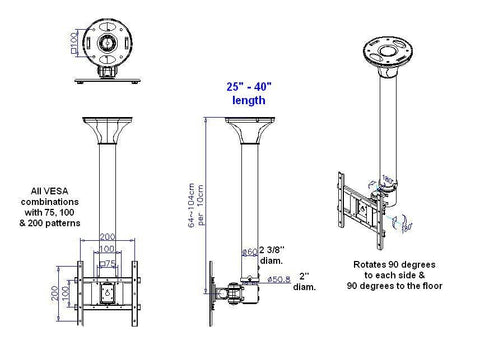

Since the TV monitor bracket mount rotates 360 degrees, the screen can be viewed in portrait or landscape modes. The bracket also tilts and swivels (image below shows 90 degree tilt, facing up). The torque of the articulations is adjustable.


- Accepts LCD monitors with VESA hole patterns 75x75; 100x100; 200x100; 200x200
- Adjustable length from 25 - 41", and then up to 121" with optional extension pole.
- Includes free adapter for 200 x 100 & 200 x 200 VESA patterns
- Holds monitors up to 25 lbs.
-Tilts up and down; rotates 360 degrees
- LCD can face the floor (perpendicular)
- LCD display in landscape or portrait mode
- Ceiling or Floor mounting
- Cables run inside the pole

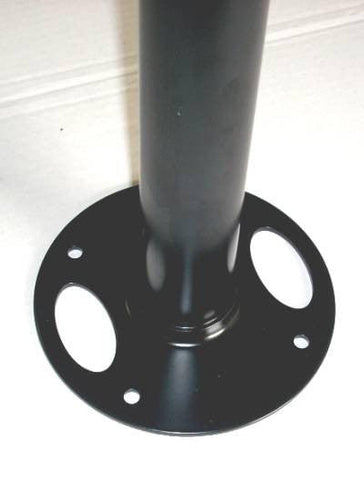

Strong 7" diameter base allows secure ceiling and floor mounting.

 Extra Long Commercial TV Ceiling Mount for up to 60" TV - extends down to 80"

 Includes neat cover to conceal the above base, for a professional finish.


Which are all the are all the possible length settings?

a) Model D25-41-80 alone: 26; 30; 34; 38; 41"

b) ADDING Model D254180-X Optional Telescopic Extension Pole: adds an extra 80", in 9 adjustments points (always in 4" increments) to achieve a maximum length of  121", when "a)" and "b)" are fully extended.

Therefore, if you add the extension with "a)" fully extended, you will take the length from 41 to 85" (41 + 44) and then have 9 additional lengths in 4" increments: 89; 93; 97; 101; 105; 109; 113; 117; 121 maximim.

If added with "a)" at 26" (not extended), the possible lengths are: 70/74/78/82/86/90/94/98/102/106".

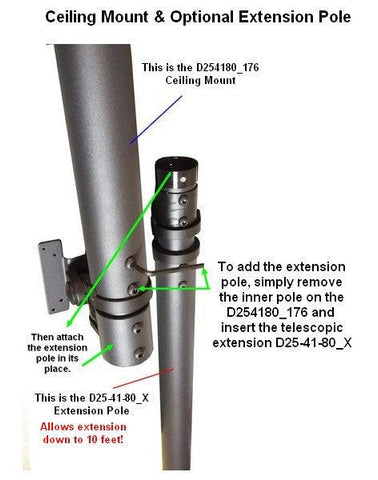

D254180-176 Ceiling TV Mount with extension pole, extends down to 10 feet!Click on the image above for a larger view

Any combination in between is possible.

Please call us with your questions or for volume orders.
