DW170S Folding Articulated LCD monitor Wall Mount Arm & Bracket

  • $ 99.00
  • Save $ 39.00


DW170S 17" Folding Articulated LCD Monitor Wall Mount Arm

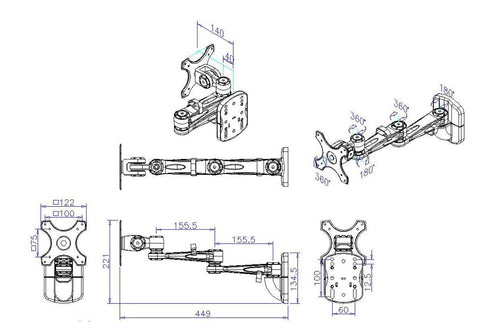

* Dimensions:
- Maximum Length: 17" distance extended from wall to rear of VESA monitor mounting plate.

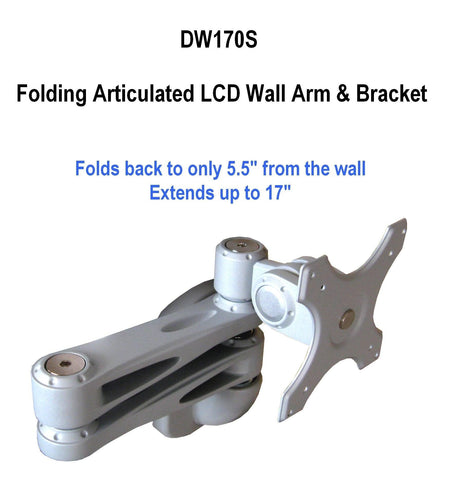

- Minimum Length totally folded against wall: 5.5"
- VESA mount hole pattern: 75 & 100 mm.
- Base: 4" W x 5.5" H

Click on the thumbnail images on this page to see more images.


* Reg. Price: $138.00
* Sale Price: $99.00 + $15.00 Shipping (contiguous US)

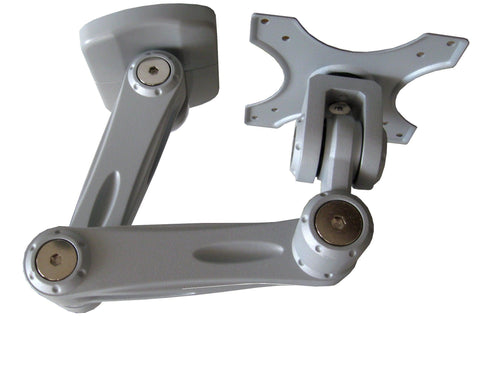

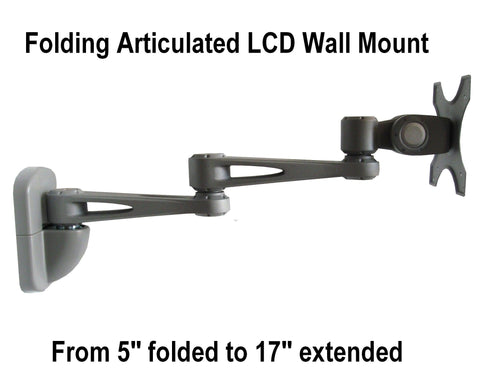

This is a solid folding LCD monitor wall arm with the capability of extending the monitor all the way out  17" from the wall. When extension is not necessary, it can be retracted back to the wall, almost flush.

DW170S_VESA-Wall-LCD-Monitor-Arm-17-inch-articulated-foldable

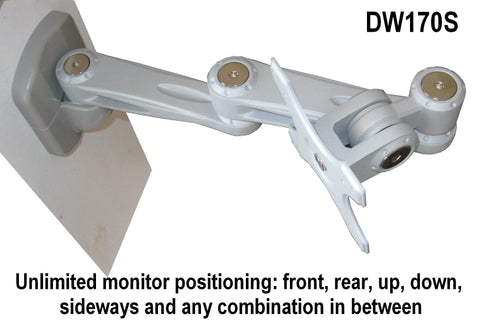

Its viewing possibilities are quite unlimited. The monitor can face almost anywhere: more than 90 degrees to any side as well as 100% to the floor or ceiling. It can also be aimed around a corner. The monitor can also be viewed in landscape or portrait mode thanks to the 360 degree rotation of the VESA mounting plate. Ideal for special projects.


DW170S_VESA-Wall-LCD-Monitor-Arm-17-inch-articulated-foldable

DW170S_VESA-Wall-LCD-Monitor-Arm-17-inch-articulated-foldable

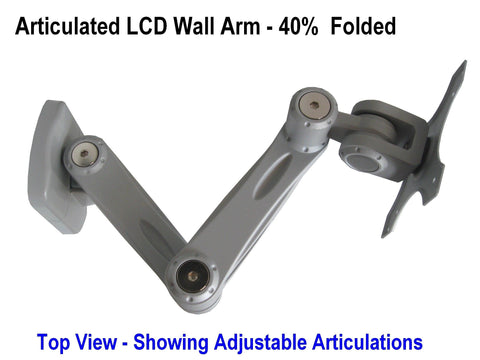

* Multiple articulations: the above movements are possible due to its multiple articulations: 1) next to the wall base (swivel 180 degrees); 2) elbow (swivel 360 degrees); 3) at VESA plate (swivel 180 degrees); 4) at VESA plate (tilt up or down 90 degrees); 5) rotation (360 degrees).

DW170S_VESA-Wall-LCD-Monitor-Arm-17-inch-articulated-foldable

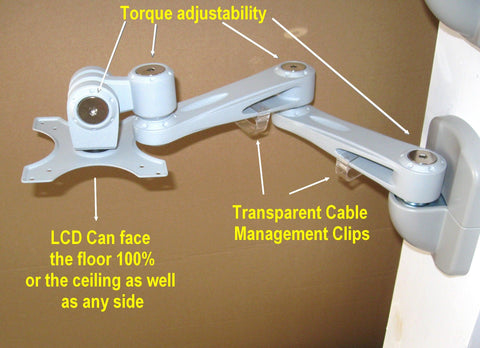

* Torque adjustment: the torque (smoothness) of the articulations can be easily adjusted by using the provided Allen wrench. The three swivel and articulation adjustment bolts are shown in the image above (swivel motions), while the tilt articulation adjustment bolt can be seen below.

DW170S_VESA-Wall-LCD-Monitor-Arm-17-inch-articulated-foldable

DW170S Foldable LCD Wall Arm -double adjustable articulation for rotate, tilt & swivel motions of VESA monitor mount
